ECH008

Description

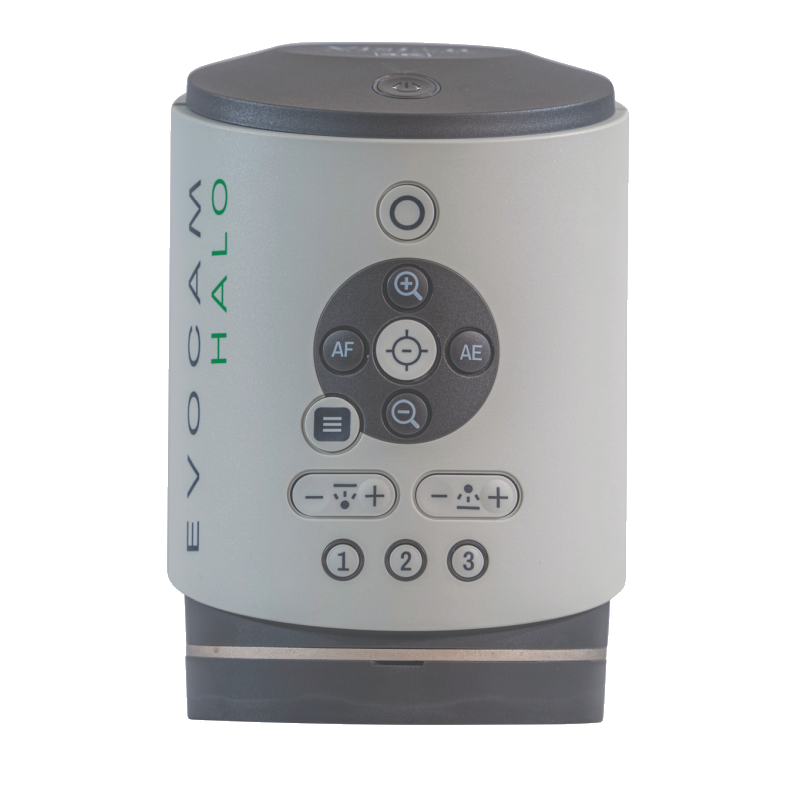

The Vision Engineering EVO CAM HALO (ECH008) 4K Ultra HD Digital Microscope combines 4K image quality with adaptive illumination to deliver high precision and versatility for inspection and measurement tasks. The 4K image quality delivers four times the amount of image data as a full HD system for display of finer details at the same magnification.

• Body/Head Only
• Optical Zoom: 20:1
• Digital Zoom: 12x, 2x, OFF
• Magnification Range: 0.84x to 468x

Key Features
• Ideal for electronics/coating, biological/life sciences, plastics/3D printing, medical devices, micro mechanics, and jewelry industries and applications
• Combines 4K image quality with advanced, adaptive illumination to deliver high precision and versatility for inspection and measurement tasks
• 4K image sensor delivers four times more pixels/detail than full HD cameras for display of finer details at same magnification
• High Dynamic Range (HDR) ensures important details are not lost in dark or light areas of images
• Auto lens ID feature automatically adjusts magnification display for more accurate inspections
• Quick-clip ring light automatically saves and recalls settings when connected
• 360° Oblique and Direct Viewer (ODV) enables both direct and rotating views of subjects, requires EVR001 accessory (sold separately)
• Users can switch from direct perpendicular view to 34° oblique angle and rotate around subjects via EVR001 accessory
• PC control version and console (keypad control) version both possible
• Users can control instrument via direct connection to monitor (not included) via HDMI for full control of zoom and other camera settings
• Users can share 4K images, videos, or reports with colleagues, suppliers, customers, and regulators across networks
• Option to save images and videos to USB drive available with both PC and console configurations
• Optional remote control console (sold separately) for handheld camera control
• Range of lighting includes quadrant-controlled white/UV top lights, sub-stage illumination, and specialized EPI and contrast-enhancing illuminators
• Range of lenses (sold separately) available for every application, optimized for digital systems and includes filter thread for easy addition of polarization
• Range of stands (sold separately) available for every application, variety of positioning or mounted types
• ViPlus software (sold separately) available for extended system capabilities

ViPlus Software Offerings
• Control of camera settings
• Image capture in .jpeg, .png, .bmp, and .tiff formats
• Annotation tools, including markers and measures
• Measurement tools such as distance, angle, diameter, and area
• Import of CAD files for inspection
• Image processing such as color inversion, shape detection, focus stacking, and overlays
• Generation of reports in Excel and other formats

Specifications
General
• Focus Control: AutoFull, AutoSpot, Manual Focus
• Exposure Control: AutoFull, AutoSpot, Aperture Priority, Shutter Priority, Manual
• Lighting Control: Quadrant, White/UV, Brightness
• Image Control: Image Freeze, White Balance, Noise Reduction, Visibility Enhancer, Highlight Correction, Gamma, Mirror-Flip, Cross-Hair
• Frequency: 30 to 25 Hz (switchable)
• Monitor Size: 7 to 100 in.
• Zoom: Zoom-In, Zoom-Out, Zoom-To, Zoom-Limit
• Information Display: ON, ON When Changing, Magnification Only, OFF
• Languages: English, French, German, Italian, Portuguese, Spanish
• Presets: 3x user-settable presets
• Image Capture: Optional capture box or via PC connection

Camera – Hardware
• Sensor: CMOS 1/2.5 in. 8.51 mega pixels
• Image: Ultra HD 2160p (3840 x 2160)
• Camera Output: 4K 2160p/30 fps
• Camera Output (Computer): 4K 2160p/30 fps on PCI Express Card
• Optical Zoom: 20:1
• Digital Zoom: 12x, 2x, OFF (selectable)
• Lens Mount: Auto-Detect Bayonet
• Interface: 4K HDMI
• Front Panel: Image Freeze, Zoom-In, Zoom-Out, Exposure Mode, Focus Mode, Menu, Ring Light Brightness, Sub-Stage Brightness, Preset 1-3
• Remote Control: Optional, requires ECX001 accessory (sold separately)
• Optics: 11 AutoDetect Bayonet Mount Objective Lenses (sold separately)
• Lighting Connection: Clip-On Intelligent Mount
• Optional Lighting: Intelligent 8-Point Quadrant, Intelligent Wide-Area Panel, Intelligent White/UV Quadrant, Sub-Stage, External EPI, Contrast-Enhancing Illuminator
• Optional Lighting Filters: Polarization, Color Temperature Change
• Including: Camera, power adapter, mains power cable, HDMI cable, USB3 cable, USB stick user guide, lens cloth and allen key

PC Requirements
• Operating System: Windows 10/11
• Processor: i7 or later version, 3 GHz
• Graphics: Graphics Card with HDMI 2.0 or higher
• Memory: 8 GB of RAM or more
• Scalability: Slot for additional x4 or x8 PCI Express Card
