Description

Digital dial indicators with unique connectivity

The latest generation of digital dial indicators in the MarCator family boasts new, innovative features: Touch operating keys, extra hardened glass fronts, colored LEDs for measurement classification and unrivalled remote control and connectivity ensure unique convenience when measuring and setting the device.

Next level assistance: Thanks to the new features, the MarCator dial indicators are ideal companions in any working environment. The large display with hardened glass front, the extra-large numerical display and the touch operating keys with practical direct functions make recording measured values easier and more reliable than ever before. The digital dial indicators are available for a wide range of measuring tasks, both for static measurements such as lengths, distances and length differences, as well as for dynamic measurements such as radial runout, straightness and flatness. In addition, special versions meet particular requirements such as inner and outer comparative measurements, even higher accuracy or special IP protection.

Advantages
• Simple operation using touch function keys
• Settings, individual locking functions and remote control conveniently by PC using the free MarCom Professional software
• Preset: 3 PRESET and tolerance values possible
• A wide range of model variants for the most diverse applications, e.g. MarCator 1087 BR(i) for inner and outer comparative measuring instruments via reversing point search, other devices with even higher accuracy or with special IP protection

Touch operating keys
With the practical touch function, a gentle touch of the surface is enough to operate the dial indicator safely – ideal for sensitive measuring tasks.
Unique measurement classification
The innovative colored LED display is used to quickly and unambiguously identify good products and waste, as well as reworks or warning limits. This information is also shown on the display using symbols.
For static and dynamic measuring tasks
The moving pointer of the additional analog scale display allows the dynamic measuring movement and tolerance limits of the MarCator 1087 models to be reliably visually identified. The MarCator 1086 models are designed for purely static measuring tasks.
Best protection
The robust hardened glass display with non-wearing touch operating keys makes the dial indicators even more durable and less susceptible to damage. In addition, the large LCD displays allow all measured values and symbols to be read off directly and at a glance.
Optimal connectivity
Convenient and secure wireless data transmission (Ri models) or USB data cable with bidirectional data transfer (R and Ri models). You can also benefit from the handy option of setting the dial indicator very easily and clearly by PC and the remote control option in conjunction with the free MarCom Professional software.

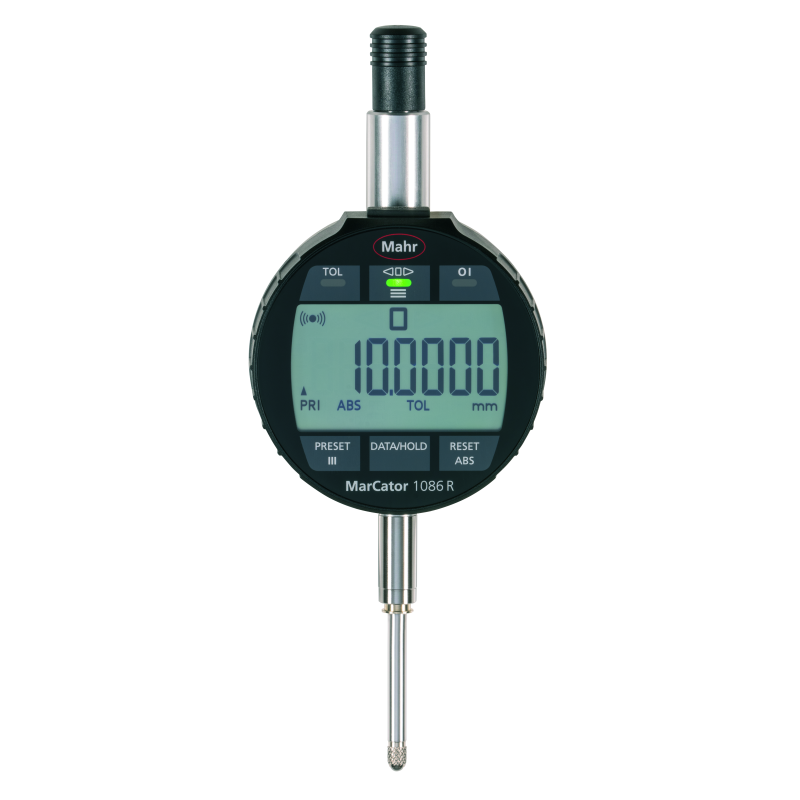

Digital indicator MarCator 1086 Ri
IP protection category: IP 42
Data interface: Integrated Wireless, USB, Digimatic
Factory standard
Measuring span : 25mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002″, .00005″, .0001″, .0002″, .0005″
Package contains: battery, test certificate, instruction manual, Cardboard box

Functions
• ON/OFF
• mm/inch
• RESET (set display to zero)
• PRESET (dimension presetting) – 3 values possible
• TOL (Tolerance and warning limit setting) – 3 tolerances possible
• <0> (Icon mode of the tolerance display)
• ABS (display can be set to zero without losing reference to preset)
• Factor (Multiplier for measuring travel)
• Reversal of counting direction
• Resolution selectable
• LOCK function (general key lock in the menu and individual key and menu locks for process-safe measurements via MarCom software)
• Bi-directional data interface (for data retrieval – transfer of parameters – remote control – individual function locks via MarCom software)
• Remote-controllable by MarCom software
• DATA (data transmission)
• HOLD (freeze current measured value)

Comprehensive measuring functions for:

• Static measurements such as lengths, distances and length differences

Product features
• Tempered glass front with touch control panels with enormous advantages:
– scratch and impact resistant surface
– excellent protection against dust, coolants and lubricants
– wear-free touch operating keys
– improved safety of measurement values in measuring stands, as only a light touch of the key – no keystroke – is required, thus no adjustment or deformation of the measuring device
• Clear tolerance symbols and colored LED signals (red, green, yellow) for measured value classification
– with warning limit input: NoGo/Go/Warning-Limit
– without warning limit input selectable: NoGo/Go or NoGo/Go/Rework
• LED signals (red, green, yellow) in mode:
– powered by battery: flashing signal
– powered by data cable DK-U1: permanent
• High contrast LCD display, thus very clear and safe to read
• Operating and display unit (bezel) can be rotated through 280°
• Mounting shank and measuring spindle are both made of hardened stainless steel
