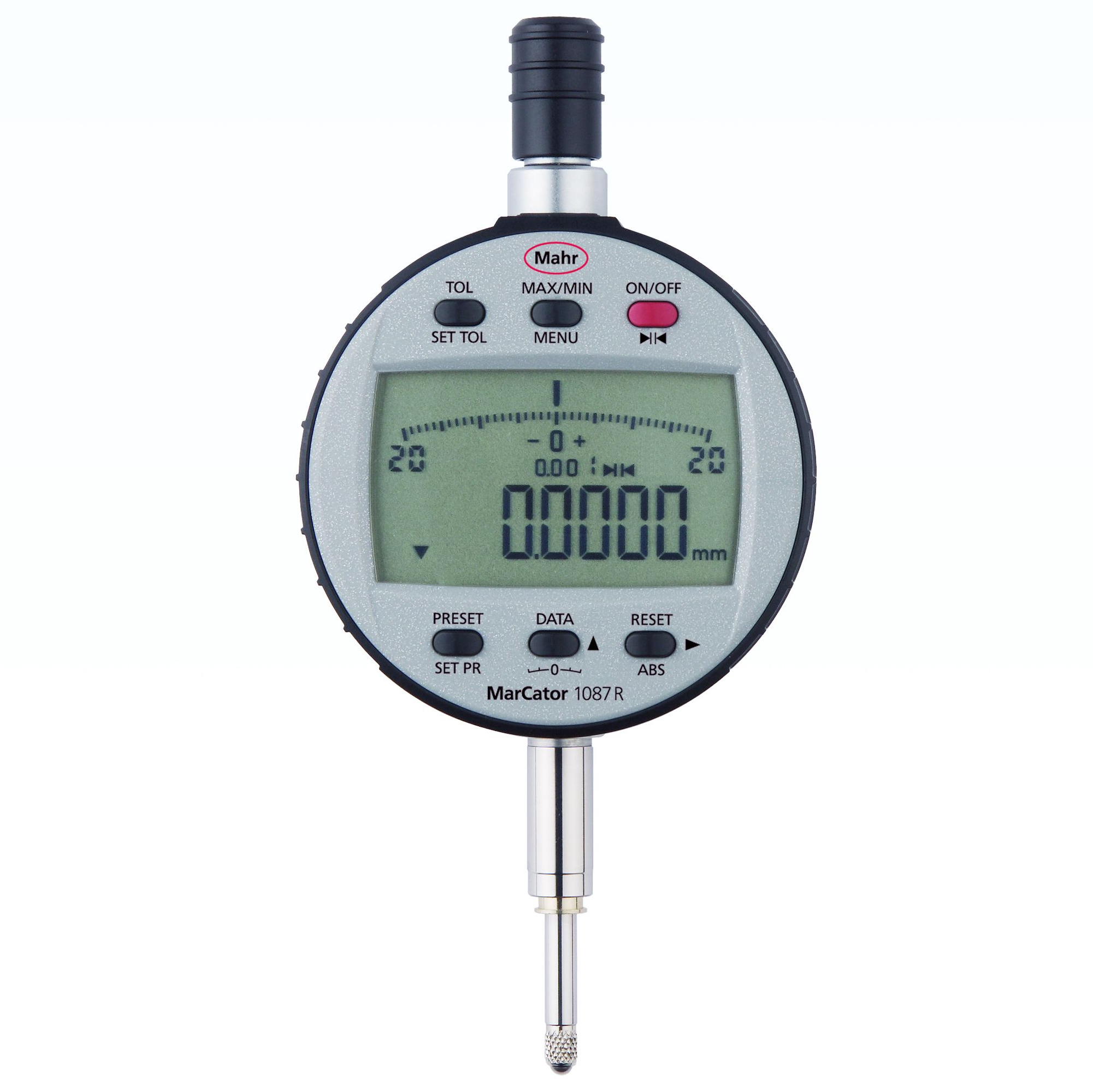

4337696

Description

FUNCTIONS
• ON/OFF
• RESET (set display to zero)
• mm/inch
• Reversal of counting direction
• PRESET (for entering a numerical value)
• TOL (enter tolerance limit values)
• MAX/MIN memory for searching the reversal point
• TIR (MAX-MIN) for testing flatness and concentricity
• ABS (display can be set to zero without losing reference to preset)
• DATA (data transmission via connection cable)
• Factor (adjustable)
• LOCK (individual key lock)

FEATURES
• High contrast LCD
• Operating and display unit (bezel) can be rotated through 280°
• Immediate measurements due to the Reference System
• Lifter protection cap on the measuring spindle
• Mounting shank and measuring spindle are both made of hardened stainless steel
• Digit height: 8.5 mm
• Data interface: Opto RS232C, Digimatic, USB
• Energy supply: Battery life approx. 3 years
• IP protection category: IP 42
• Package contains: instruction manual, battery

Application:
High-resolution model: Resolution 0.1 µm
Extensive measuring functions for:
– Static measurements e.g. lengths, distances and length differences
– Dynamic measurements e.g. radial run-out, straightness and flatness, by means of MAX / MIN / MAX-MIN functions
