4305205

Description

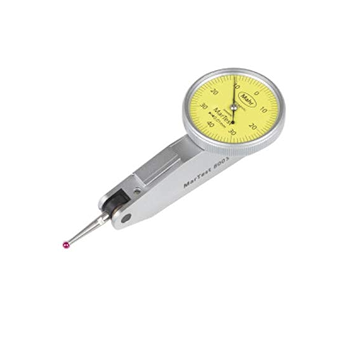

MarTest 800 S-R

FEATURES

Standard model

• High-contrast dial face, sealed with O-ring

• Mineral glass viewing panel for best protection:

– against cracking, scratching or damage caused by hot shavings

– optimum resistance to solvents

• Matt chrome-plated protective casing with three integrated dovetail guide rails

• Shockproof measuring mechanism

• Anti-magnetic model

• Automatic adjustment to the contacting direction ensuring infallible readings

• Ball bearing mounted double lever

• Friction clutch overload protection

• Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8

Application:

• Measurement of concentricity, alignment, parallelism and flatness

• Centering of bores and shafts

• Parallel or perpendicular alignment of work pieces
