4112571

Description

The ideal choice for your workshop

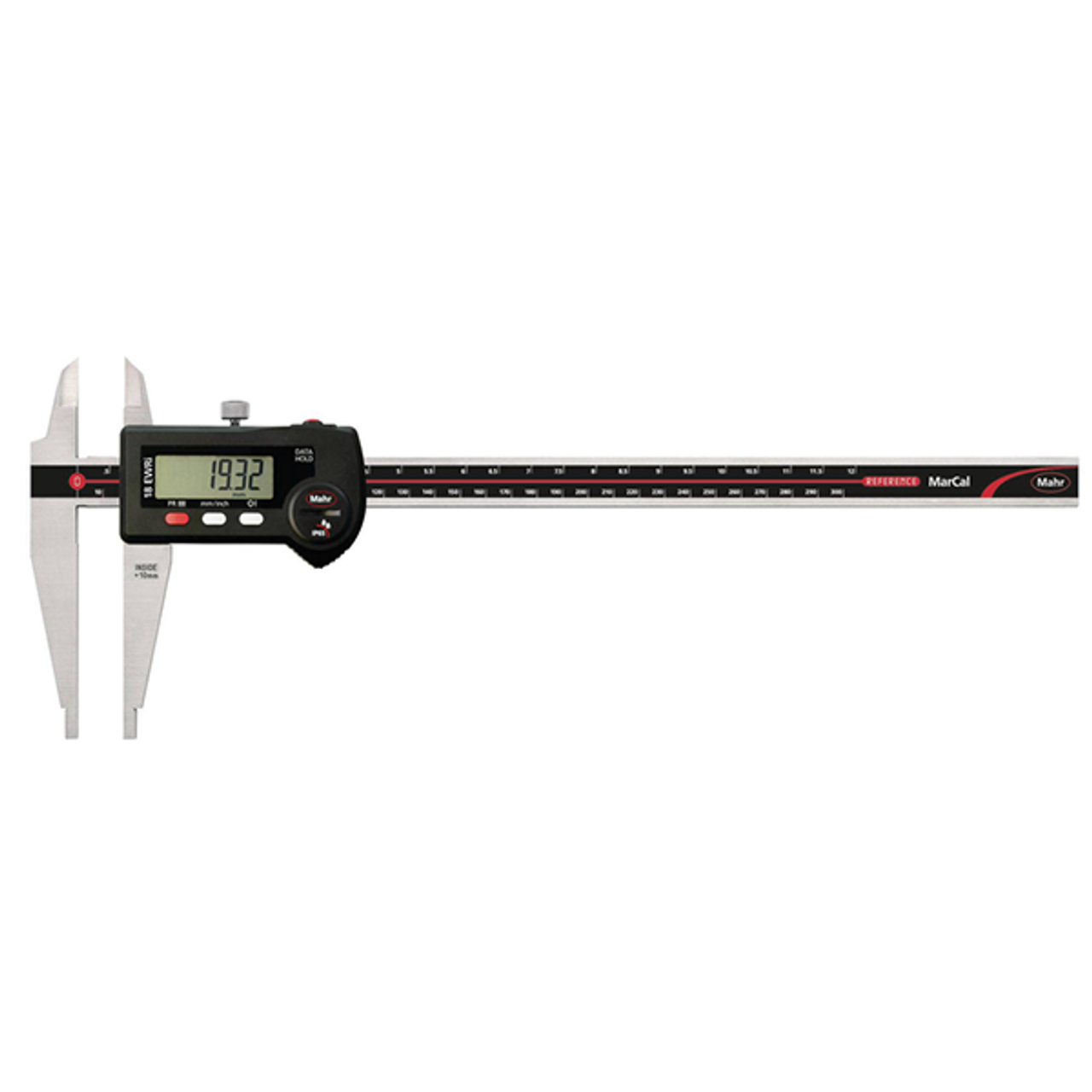

The new MarCal 18 EWRi workshop caliper with Integrated Wireless

The display, enlarged to 12.5 mm, makes reading the measured values even more convenient and error-free. The simple operation has been completely redesigned: typical measuring functions are triggered by direct keys and system settings are made via a clear and intuitive menu. The MarCal 18 EWRi caliper gage has been specially developed for the workshop and offers maximum freedom of movement for unimpeded working thanks to Integrated Wireless and large measuring ranges.

Benefits
• Data transmission via Integrated Wireless — autonomous measurement without expensive add-on modules or troublesome data cables
• Large display (12.5 mm digit height) for safe reading of the values
• Direct function keys and intuitive, menu-driven settings
• Maximum freedom of movement especially for large measuring ranges up to 1000 mm

FUNCTIONS
• ON/OFF
• AUTO-ON / OFF
• HOLD (storage of measured values)
• RESET (set display to zero)
• PRESET (for entering a numerical value)
• Reversal of counting direction
• mm/inch
• LOCK function (key lock)
• DATA (data transmission)

FEATURES
• High contrast analog display
• Locking screw above
• Rounded measuring blades for inside measurements
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide
• Software: MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS–232 interface)
• Digit height: 12,5 mm
• Data interface: Integrated wireless
• Energy supply: Battery life approx. 3 years (approx. 0.5 in wireless mode)
• Battery type: CR 2032 (3V Lithium)
• IP protection category: IP 65
• Package contains: battery, instruction manual, case
