350006

Description

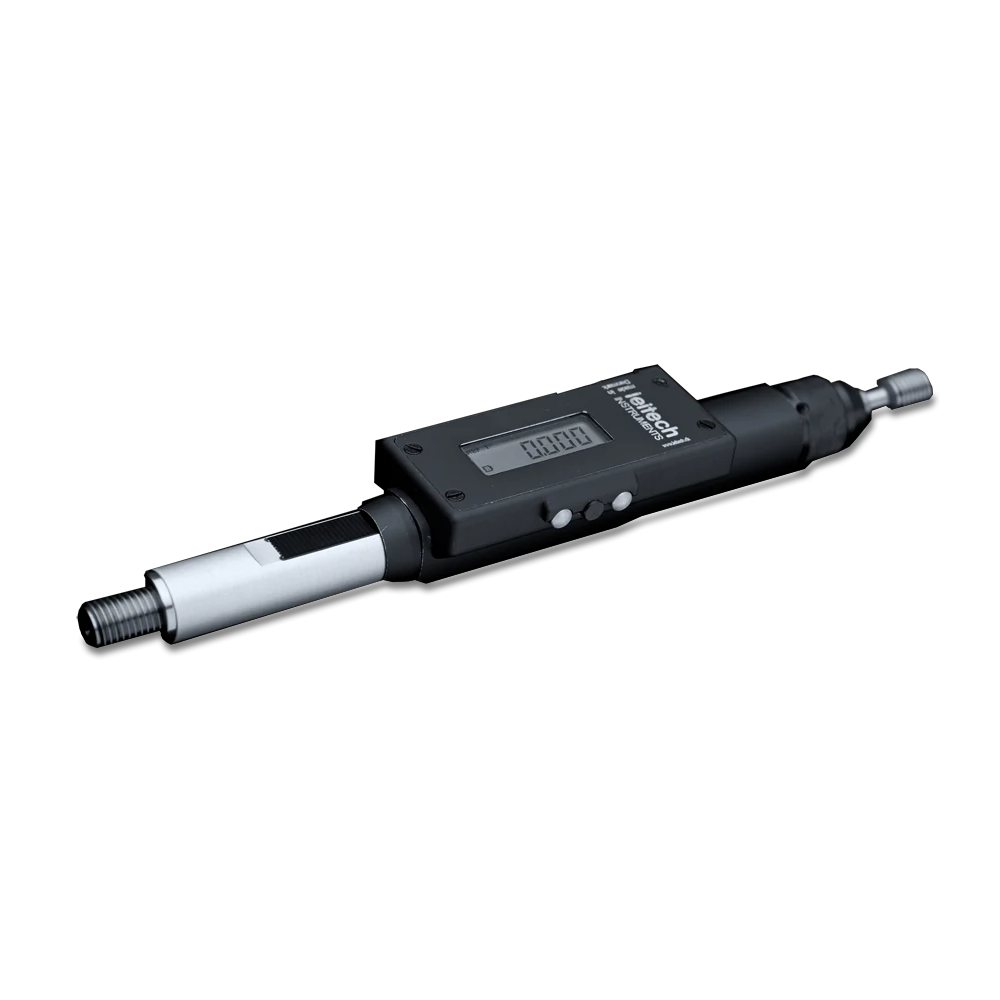

The Leitech Digi Gauge is a refined model of the Leitech High-Resolution Gauge. The Digi Gauge reveals the exact measurement on a digital screen. By using the Leitech Digi Gauge you can improve the accuracy of your measurement.

The resolution of the scale on Leitech Digi Gauge System is 0.01 mm/0.0005″.

System Leitech is a thread control system for internal threads, which measures the internal thread size and depth in one operation. This instrument is the only thread gauge of its kind in the world that measures the thread size and depth in one operation.
This gives the user an accurate and reliable measurement, and at the same time provides timesaving of up to 70%, compared to traditional thread gauges.

Instead of investing in a new complete gauge every time a gauge is worn out, the inserts on the Leitech gauge are of a special taperlock design, which can be easily replaced with a removal sleeve tool that can be delivered from Leitech.

All Leitech Gauges with a pitch diameter larger than 0,8 mm have the crest of the first full thread on Go according to Federal Standard H28/6. This means that the distance from the thread member from face to the crest of the first full thread is 0,5 pitch with a tolerance of 0,06 pitch.
This provides the user with an accurate depth reading, which is not possible without this. The use of traditional thread gauges will often provide the user with a wrong measuring of the depth.

Delivered wirh Adj. pc DIGI T300 P0.8 (350074)
