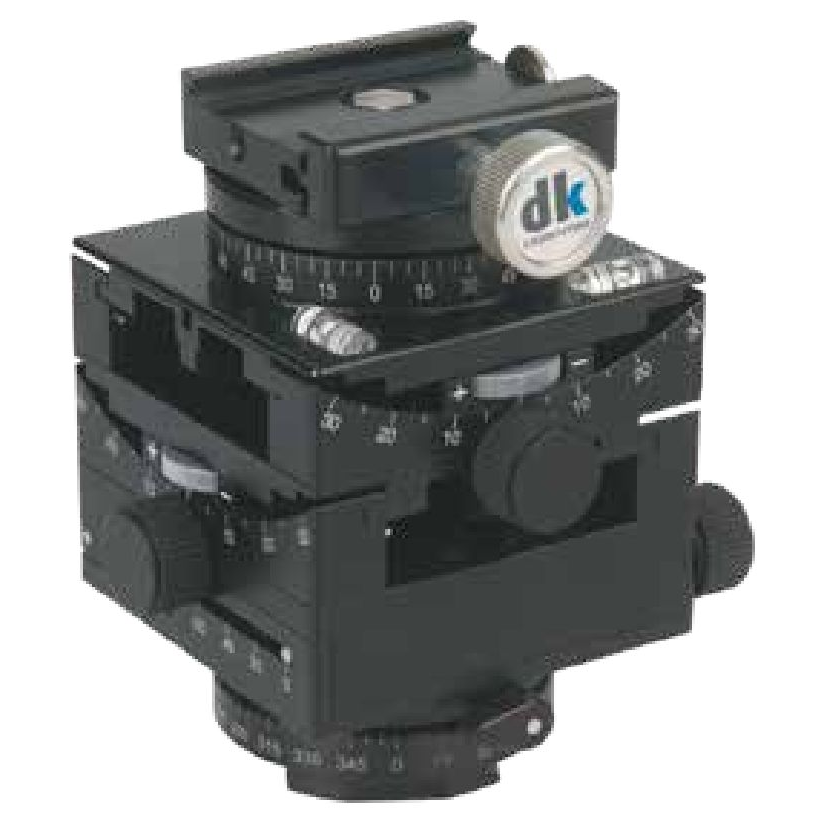

Swivel unit Cube with three-dimensional adjustment
Available on backorder
Description
3D geared head for quick and flexible spatial positioning of parts. Both the entire swivel unit and the upper quick-action clamp can be rotated through 360°. Two separate goniometers and a pivot unit enable swivelling up to 90°. Mounted on an SWA 39 quick-change adapter. Scales in all axis enable for reproducible clamping without any problem.
Material
Body hard-coated aluminium.
Guides and drive brass/steel.
| HS Code | |
|---|---|
| Weight | 1270 g |
