261000

Description

Description

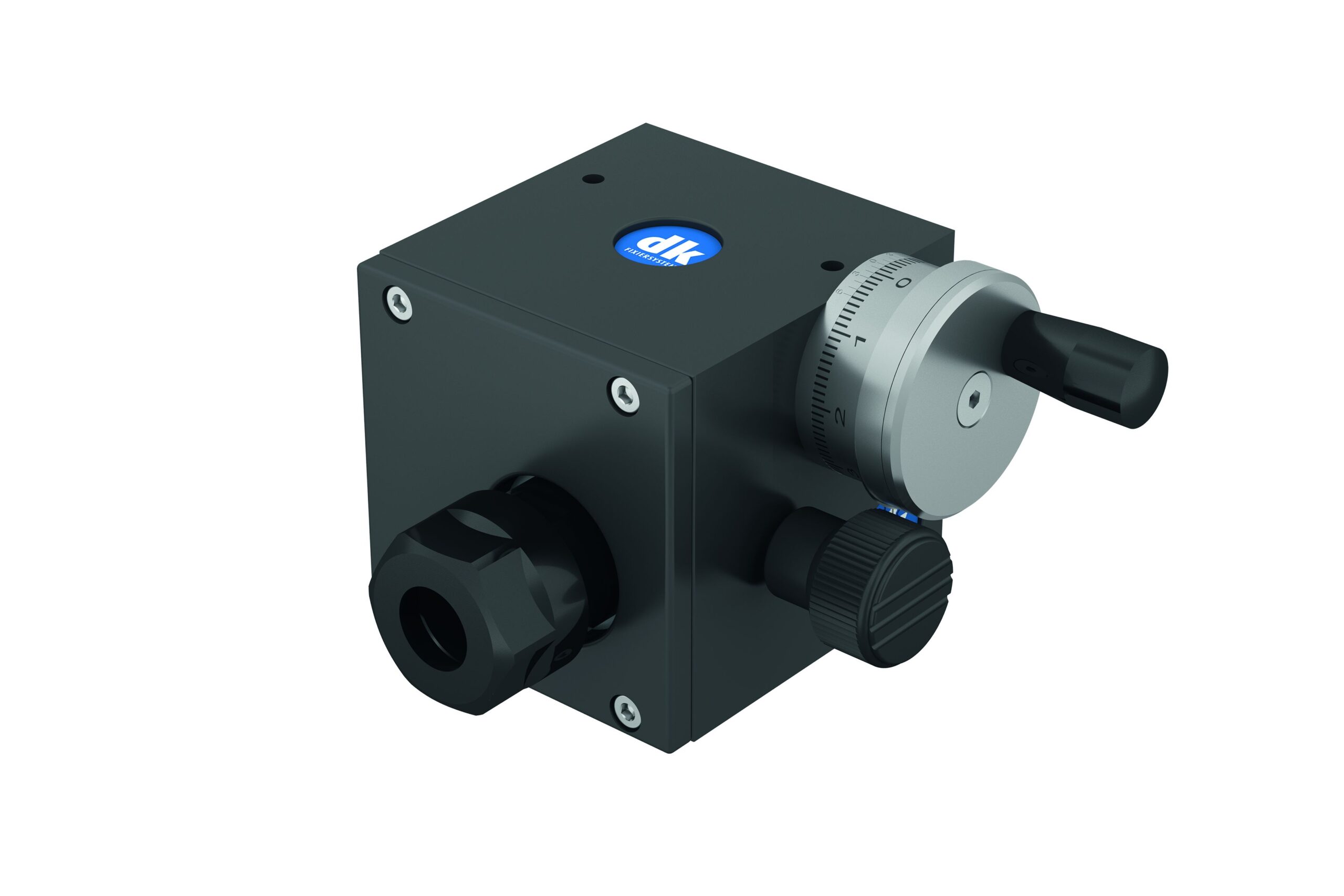

Dividing head with spindle ratio reduction 1:40. Precise indexing with a graduated dial and vernier scale. With ER16 collet chuck for 0.5–10 mm collets. Chucks from the range of accessories can also be mounted. Spindle locked with a knurled screw. The dividing head can be flexibly mounted using a variety of baseplates, attachment plates and mounting plates from the accessory range. Longer components can also easily be set up by using the movable tailstock 306020 and the adjustable baseplate 262510. The dividing head riser 261050 must be used for use with the tailstock.

Material

Aluminium / steel.

Scope of delivery

Includes control apparatus.

Spindle concentricity     ± 0.01 mm
Vernier scale indexing accuracy     ± 10 min.
Centre height     24
L/W/H     90 / 120 / 60
Mount     4 x M 4
